65L BrewZilla Gen 4 - Heat Exchanger Dish (HED)
KL29360

This is an upgradeable accessory to the 65L BrewZilla Generation 4 only.
It is not compatible with any previous generations of BrewZilla's / RoboBrew or DigiBoils.

Heat Exchanger Dishes are also available for Gen 4 BrewZilla's in other sizes
KL29353 - 35L BrewZilla Gen 4 Heat Exchanger Dish (HED)
KL29360 - 65L BrewZilla Gen 4 Heat Exchanger Dish (HED)
KL29377 - 100L BrewZilla Gen 4 Heat Exchanger Dish (HED)

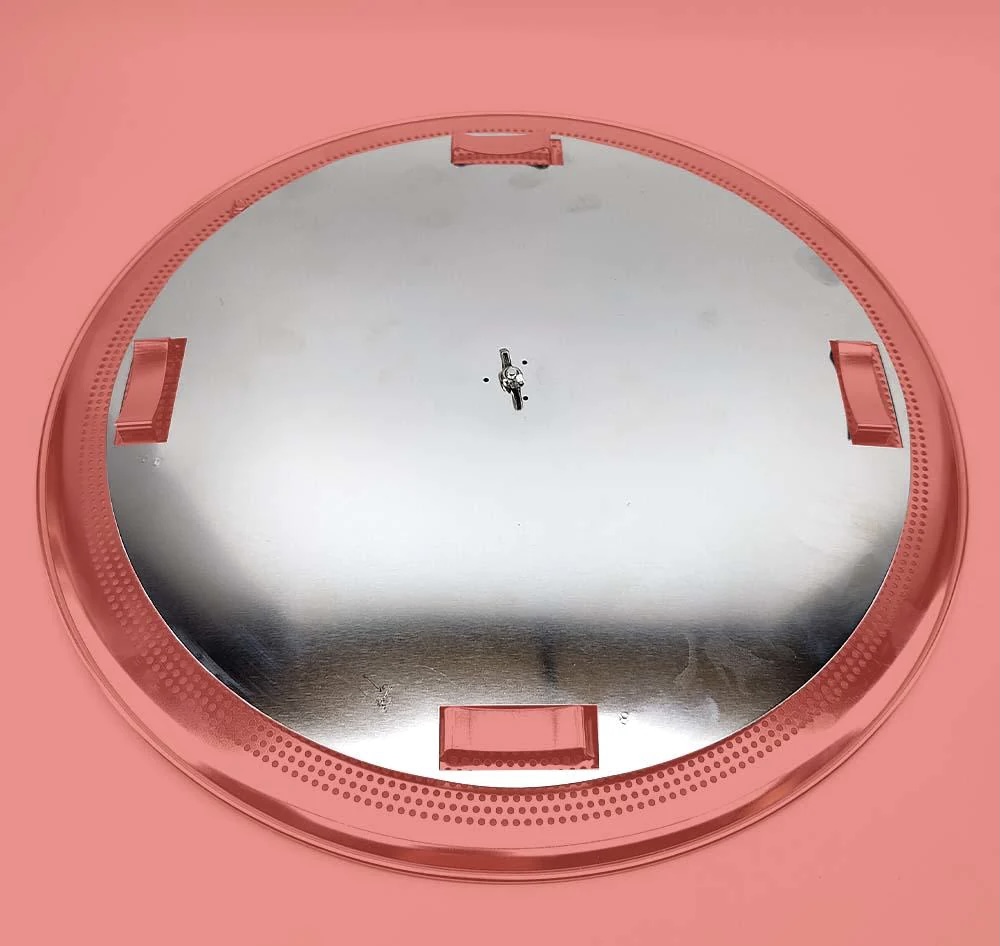

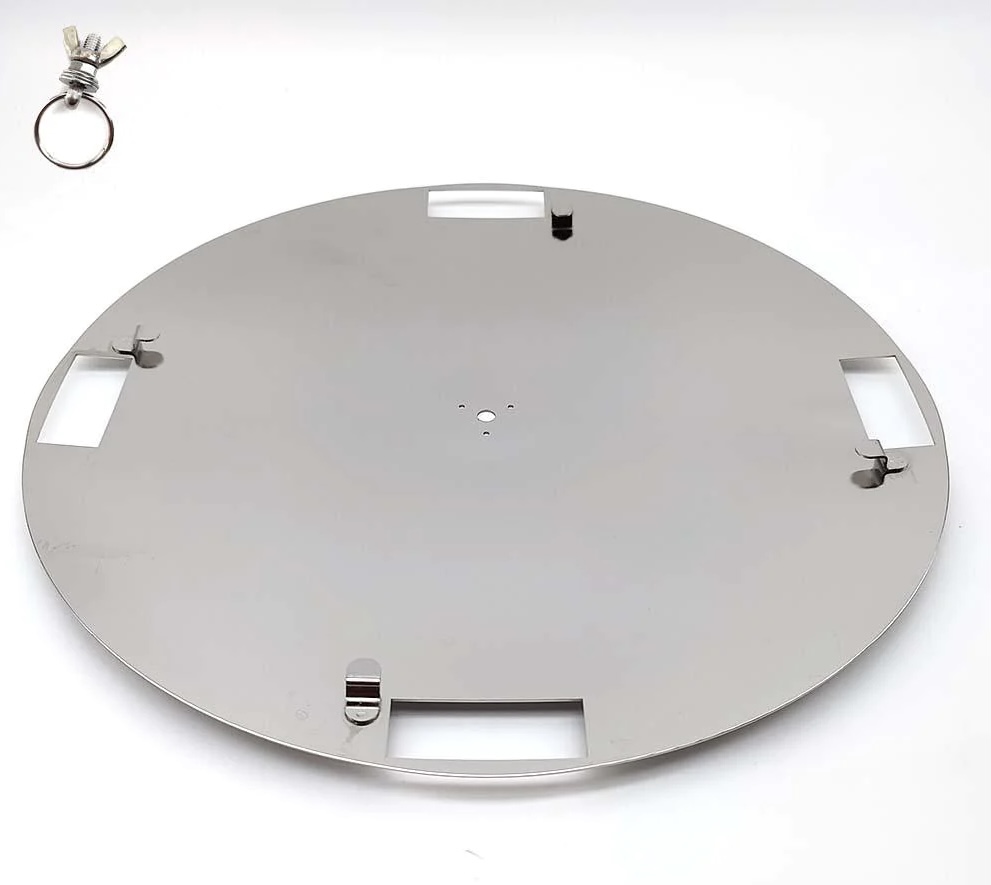

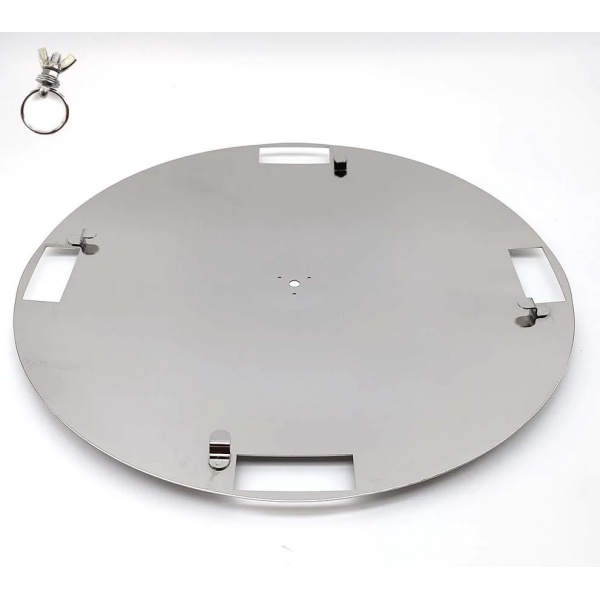

It has been pressed into a slight concave shape to match the curvature of the boiler false bottom of the 65L BrewZilla Gen 4. It also includes a longer Eye Bolt assembly with a wing nut.
The order of bolt to washer to nuts goes as follows. Eye bolt, washer, false bottom, washer, nut, HED then wing nut. This is so that the eye bolt does not come completely removed when and if you clean underneath the Heat Exchanger Dish.

What does it do?
Due to the concave bottom and central draining hole, the wort being recirculated through the pump will pass through the malt pipe and then down through the boiler false bottom. The wort would normally then follow the path of least resistance, making a b-line for that drainage hole.
What this Heat Exchanger Dish does is force that recirculating wort up to the edge of the BrewZilla base and pass over the elements for a longer period, this then aids in faster heating exchange with the wort, which can help you on a brew day reach those temperatures much quicker.

Please see our video below for more information.

We would also recommend using the RAPT Bluetooth Thermometer to control your mash temperatures from a temperature reading of the core of your malt pipe.
KL24334 - RAPT - Bluetooth Thermometer -20 to 300C - 20cm HTC Probe
This is also not limited just for your BrewZilla Gen 4. We will be bringing out other RAPT enabled devices like the PPSU Modular Sight Glass Stills and Meat Smokers.
